High Power Bench Power Supply Adjustable 120V 10A 100V 150V 200V 3A 5A 15V 20A 40A 60A 30V 20A 30A 60V20A 300W-1200W

We will arrange suitable plugs based on your order address, and you can also leave us a message.

The input voltage is AC 110V or AC 220V. We will also ship the appropriate input voltage according to your order address. If you have special requirements, please leave us a message or contact customer service.

Countries using 110V input voltage: Japan, United States, Colombia, Canada, Mexico, and some parts of Brazil, Other countries and regions default to using 220V input voltage.

Product Features:

1. Single output, high precision, high reliability, low ripple and noise

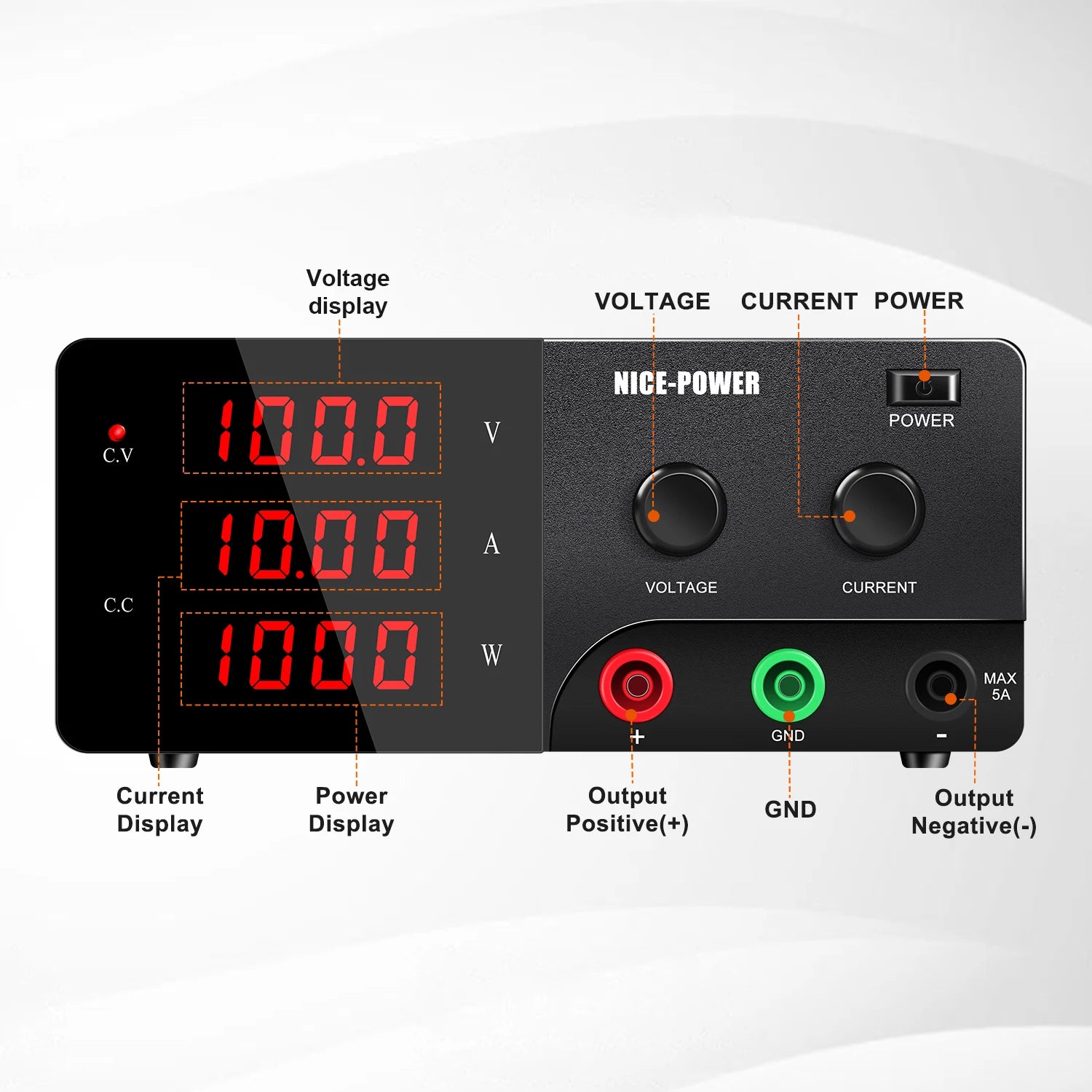

2. LED digital display voltage and current values with mA

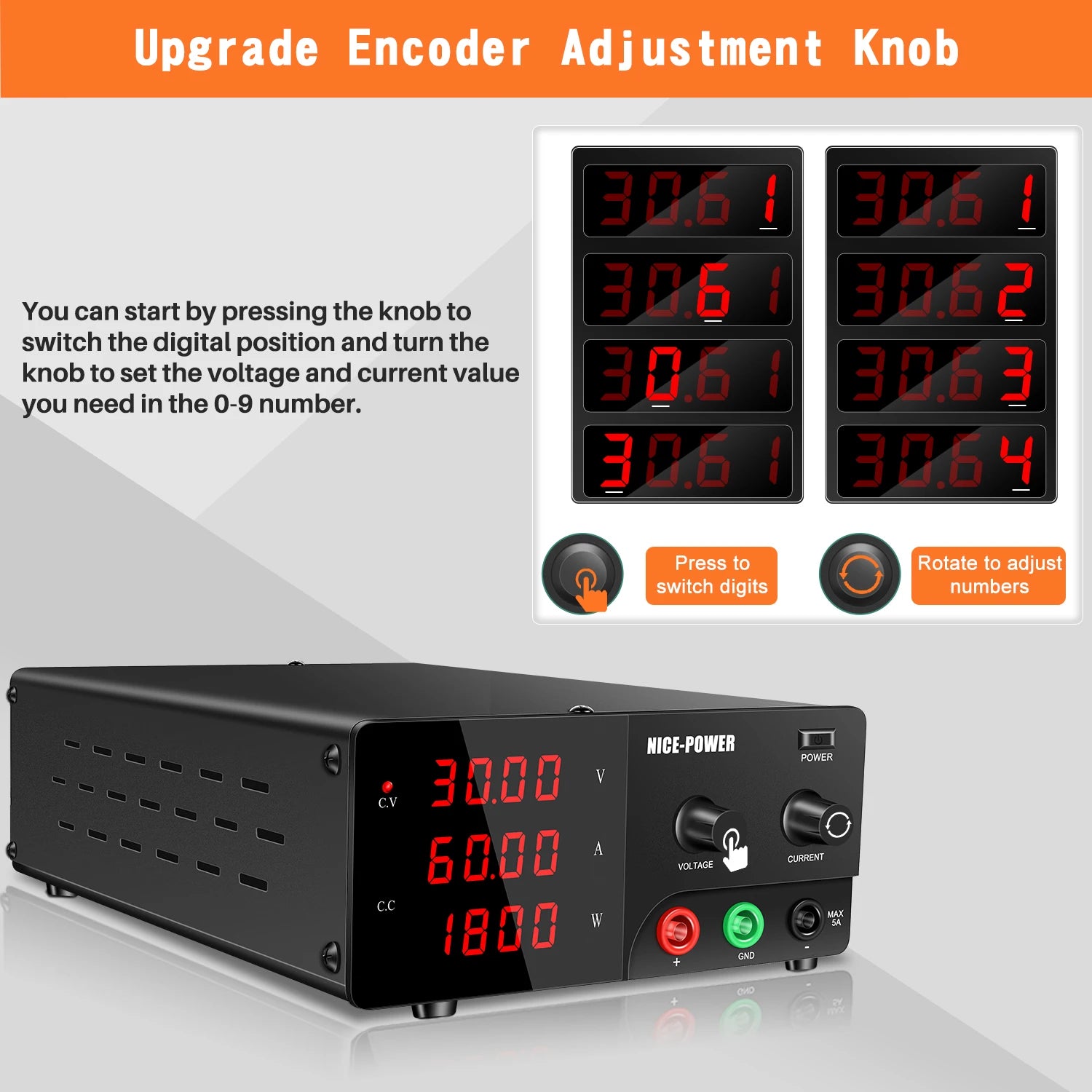

3. With voltage / current coarse adjustment knob, can adjust the voltage / current value accurately
4. Constant voltage constant current operation mode, can be automatically converted
5. With current limiting protection
6. Excellent quality

Application range:
1. For teaching experiments, research
2. Testing and aging for electronic production line products
3. For the repair of communication equipment
4. Other areas that require DC regulated

Technical Parameters
Input voltage: AC220V±10% 50Hz / AC110V±10% 50Hz
Working temperature: -10 ° C -40 ° C Relative humidity <90%
Storage temperature: -10 ° C -70 ° C Relative humidity <80%
Regulated state: Voltage stability ≤ 0.01% + 3mV
Load stability ≤ 0.01% + 5mV
Recovery time ≤100us
Ripple noise ≤1mVrms
Temperature coefficient ≤300PPM/°C
Steady flow state: Current stability ≤ 0.2% + 3mA
Load stability ≤ 0.2% + 3mA
Ripple noise ≤ 3mArms (effective value)Your Packing List Include:1X DC Power Supply1X Power Adapter(EU/AU/UK/US we will send according to you country)1X Black Output Line1X Red Output Line1X Instruction Book (English)1X Pakcgae Box（Hard）2X Protective Sponge1X Certificate of Conformity(1 Year)

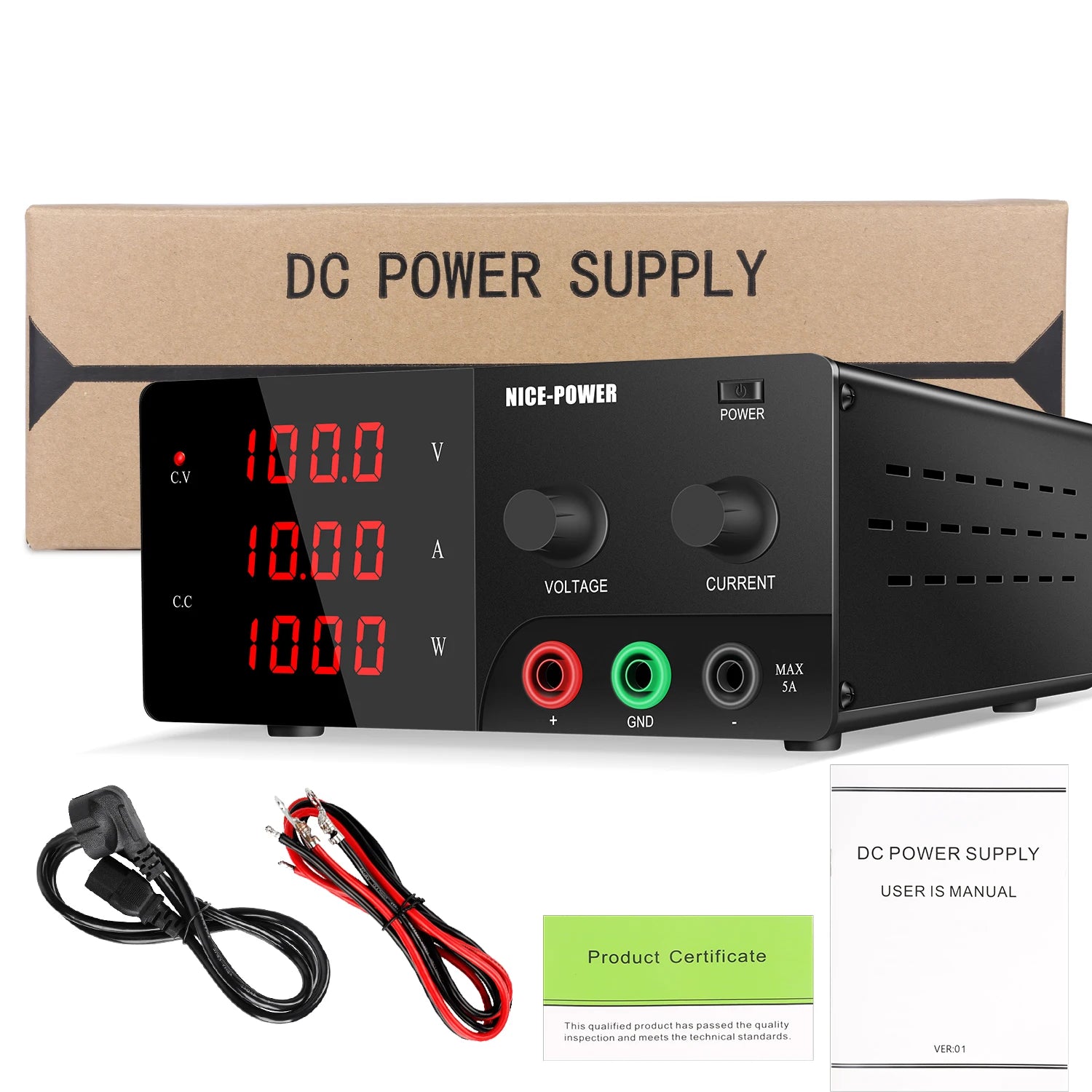

Your Packing List include:
1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
2X Protective Sponge
1X Certificate of Conformity(1 Year)

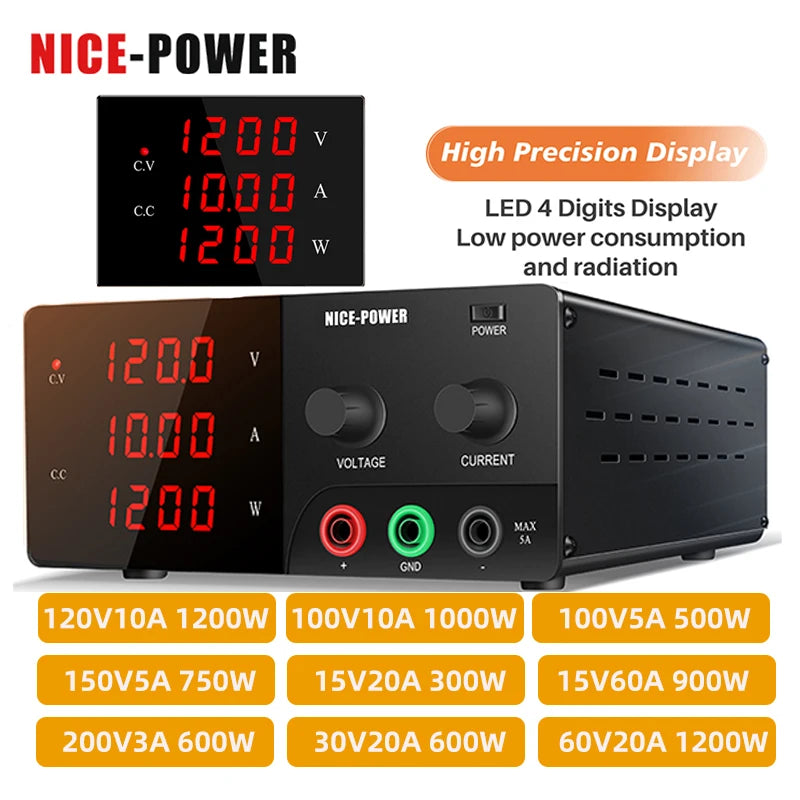

Multiple options available

120V 10A 1200W: 0-120V 0-10A Adjustable
100V 10A 1200W: 0-100V 0-10A Adjustable
100V 5A 500W: 0-100V 0-5A Adjustable
150V 5A 750W: 0-150V 0-5A Adjustable
15V 20A 300W: 0-15V 0-20A Adjustable
15V 30A 450W: 0-15V 0-30A Adjustable
15V 40A 600W: 0-15V 0-40A Adjustable
15V 50A 750W: 0-15V 0-50A Adjustable
15V 60A 900W: 0-15V 0-60A Adjustable
200V 3A 600W: 0-200V 0-3A Adjustable
200V 5A 1000W: 0-200V 0-5A Adjustable
30V 20A 600W: 0-30V 0-20A Adjustable
30V 30A 900W: 0-30V 0-30A Adjustable
60V 10A 600W: 0-60V 0-10A Adjustable
60V 20A 1200W: 0-60V 0-20A Adjustable

As Below

Questions & Answer

Q 1:The current knob has been turned,why can't the current be adjusted?
A 1:You must connecte a load and the voltage setting cannot be 0, and then the current is adjusted

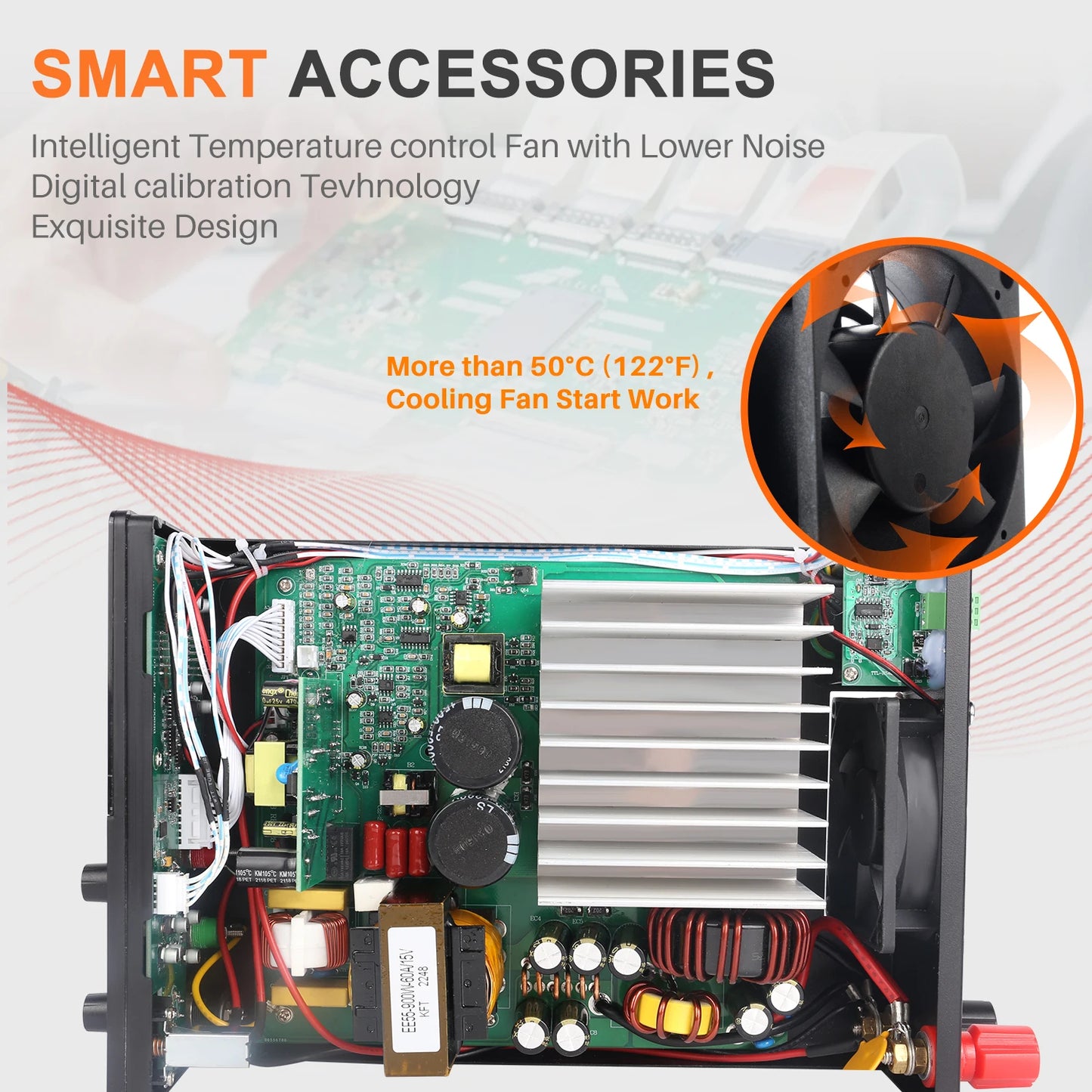

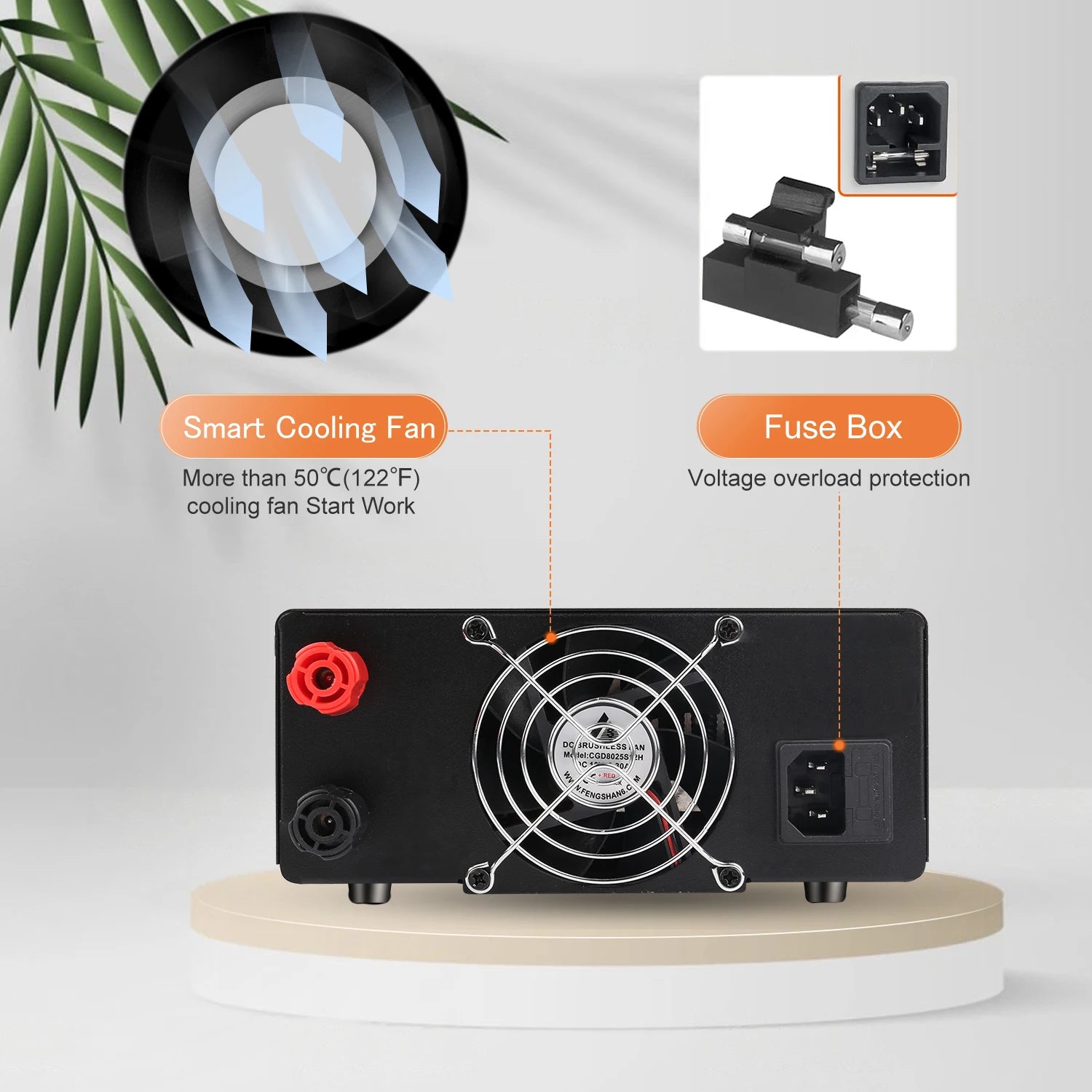

Q 2:Why isn't the cooling fan working?
A 2:We installed a smart cooling fan with a built-in temperature control sensor that turns on when the temperature reaches 50 degrees Celsius.

Q 3:I can't choose the input voltage 220V or 110V?And the EU/AU/US/UK plug ?
A 3:We will send the corresponding products and plug according to your country, if you have
special needs, please contact us, we will send the correct products to you.

Q 4:Scratches on the screen？
A 3:There is a protective film on the screen that can be peeled off.
