Vanmoof s3/x3 smart unit charge BYPASS

Hello this bypass is suitable to solve the error 6, 17 ,20 , 19 that appear after you haven’t used your bike for a while (this is a design and a manufacturing fault )

BE AWARE , THIS WILL NOT WORK IF YOUR BIKE BATTERY IS DEAD AND HAS FUSE BLOWN … PLEASE REPAIR , REPLACE YOUR BATTERY FUSE , IF NOT AUTORISED ELECTRONIC ENG, PLEASE SEEK HELP FROM AUTORISED ELECTRONIST …. CHECK OTHER LISTING ABOUT THE FUSE AND RESISTOR ,

THERE IS A VIDEO FOR YOUR AUTORISED ELECTRONIC ENG TO FOLLOW AND INSTALL THE NEW FUSE

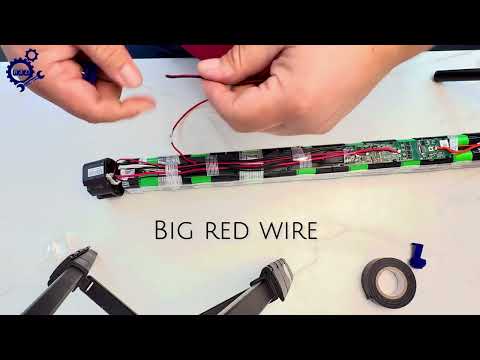

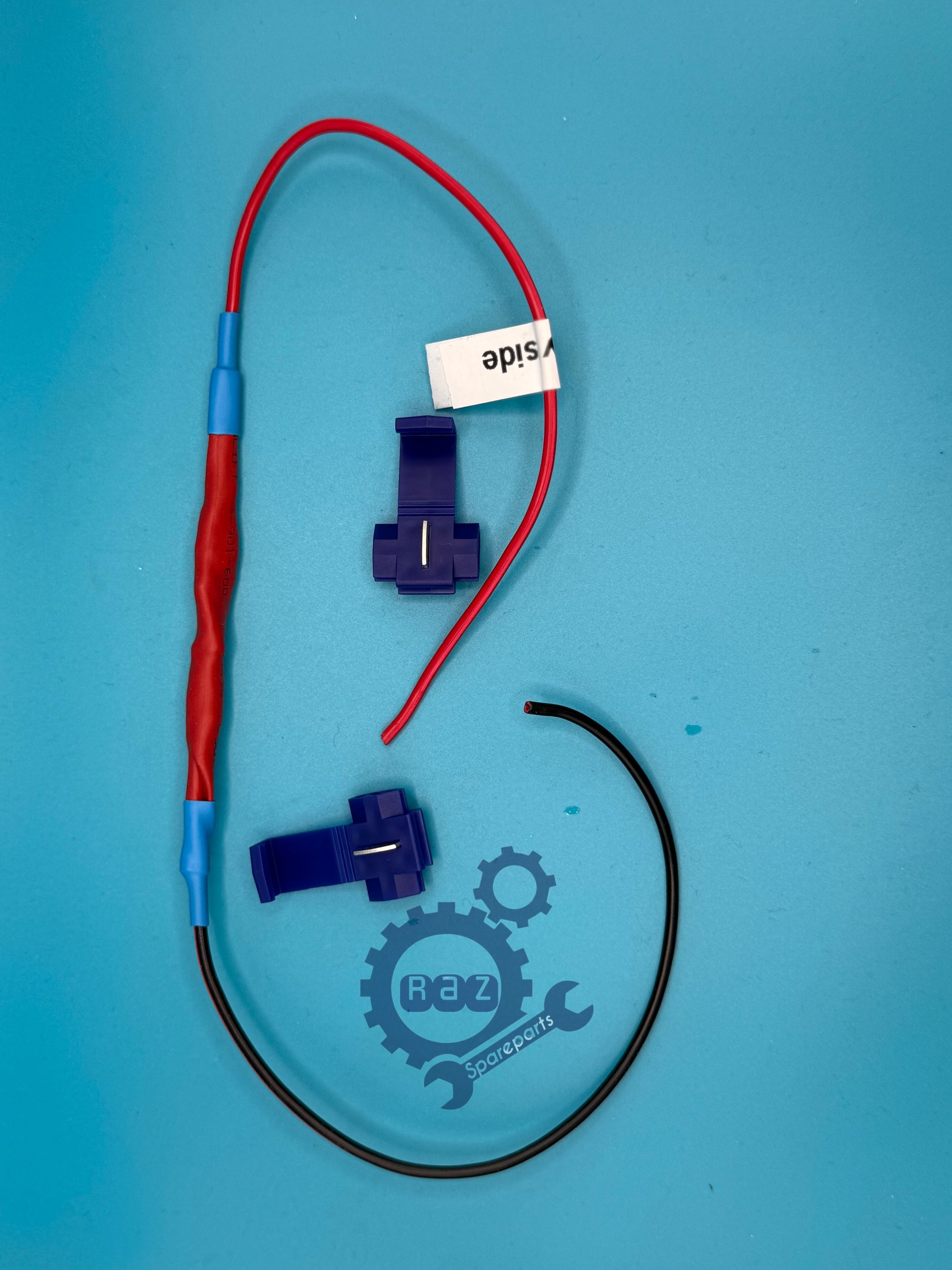

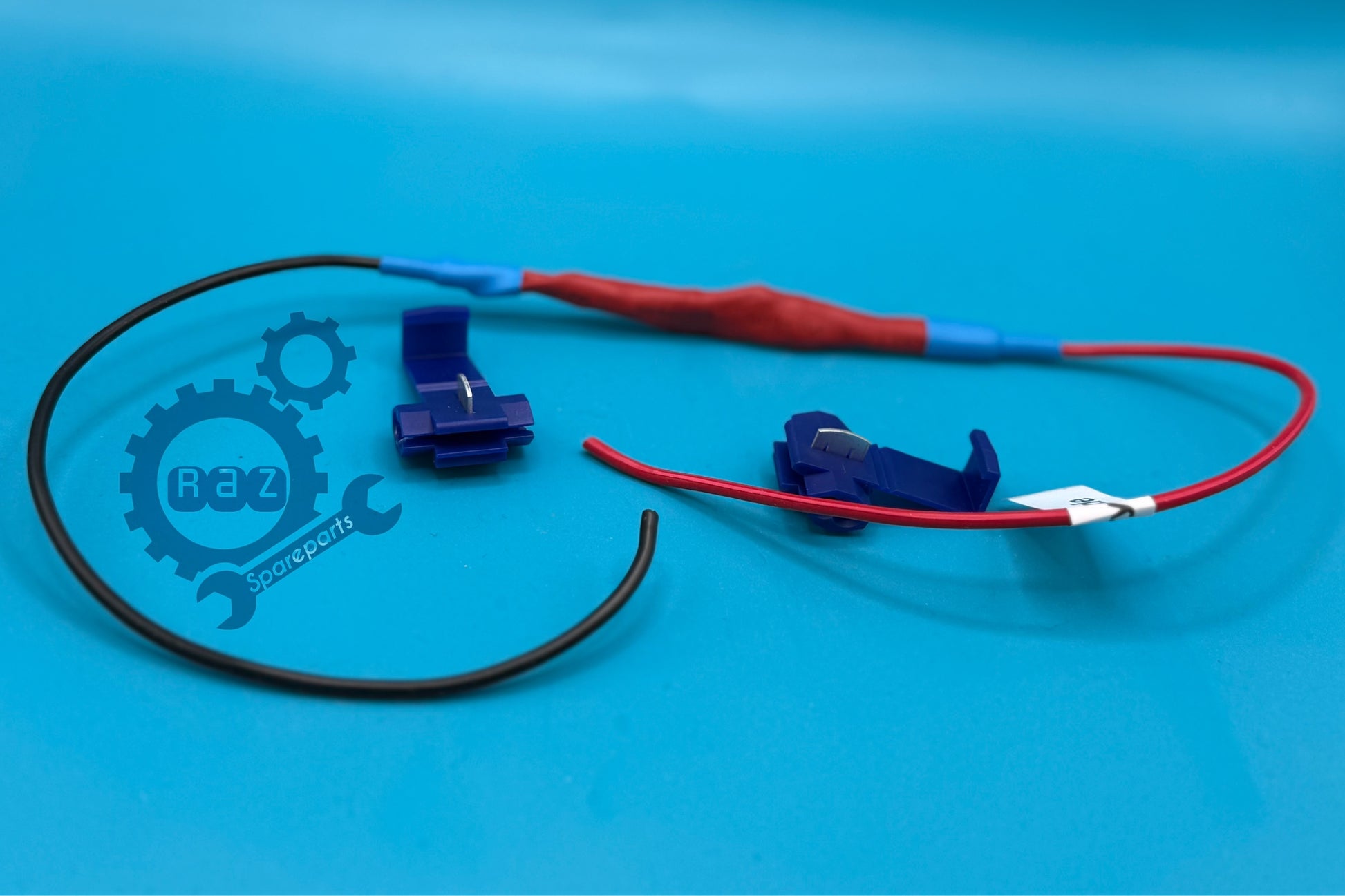

THIS SHUNT WILL BE HOOKED BETWEEN BATTERY CELL SIDE + AND BMS SIDE DSG (DISCHARGE SIDE ,OTHER THIK RED CABLE )

What is the purpose of this ?

Will allow a small current to pass …. Limited at 0.1A to keep your smart unit battery topped up when bike is siting in storage

This shunt will not affect safety of the battery or bms functionality

BE AWARE SMART UNIT ALWAYS CONSUMING POWER SO EVERY 40 DAYS YOU ARE RECOMMENDED TO CHARGE YOUR BIKE TO AVOID YOUR BIKE TO GO UNDERVOLTAGE CAUSING PROBLEMS …

FOR OVER WINTER STORAGE I RECOMMEND YOU TO REMOVE THE BIKE BATTAERY IDEALLY TO KEEP THE BIKE IN ROOM TEMPERATURE

IS HIGHLY RECOMMENDED TO BE KEEPT AT ROOM TEMPERATURE OVER WINTER TO AVOID SELF DRAINING

FIRST START OF THE BIKE WITH THE SHUNT AFTER LONG STORAGE OR BIKE BEING DEAD FOR A WHILE

THE PROCEDURE WITH THE SHUNT IS WAY EASIER ( U DONT NEED THE CHARGER TO POWER UP )

1 INSERT BATTERY IN THE BIKE FRAME

2 WAIT FOR 1 HOUR ( ALLOW SMART UNIT BATTERY TO CHARGE )

3 HARD RESET YOUT BIKE (hold the frame button for 10 seconds until u see the reset sing on display ) keep button pressed down 10 seconds

4 POWER YOUT BIKE

IF UR BIKE IS STILL DEAD AFTER THIS STEPS MEANS THAT MAIN BATTERY IS LOW VOLTAGE OR DEAD ….
LEAVE  THE BIKE ON CHARGE (CHECK THE CHARGER LIGHT TO BE RED )

IF LIGHT BLINKING OR IS FULL GREEN IS A SIGN OF A BATTERY FAULT OR LOW VOLTAGE

SEEK HELP FROM AUTORISED PERSONNEL
